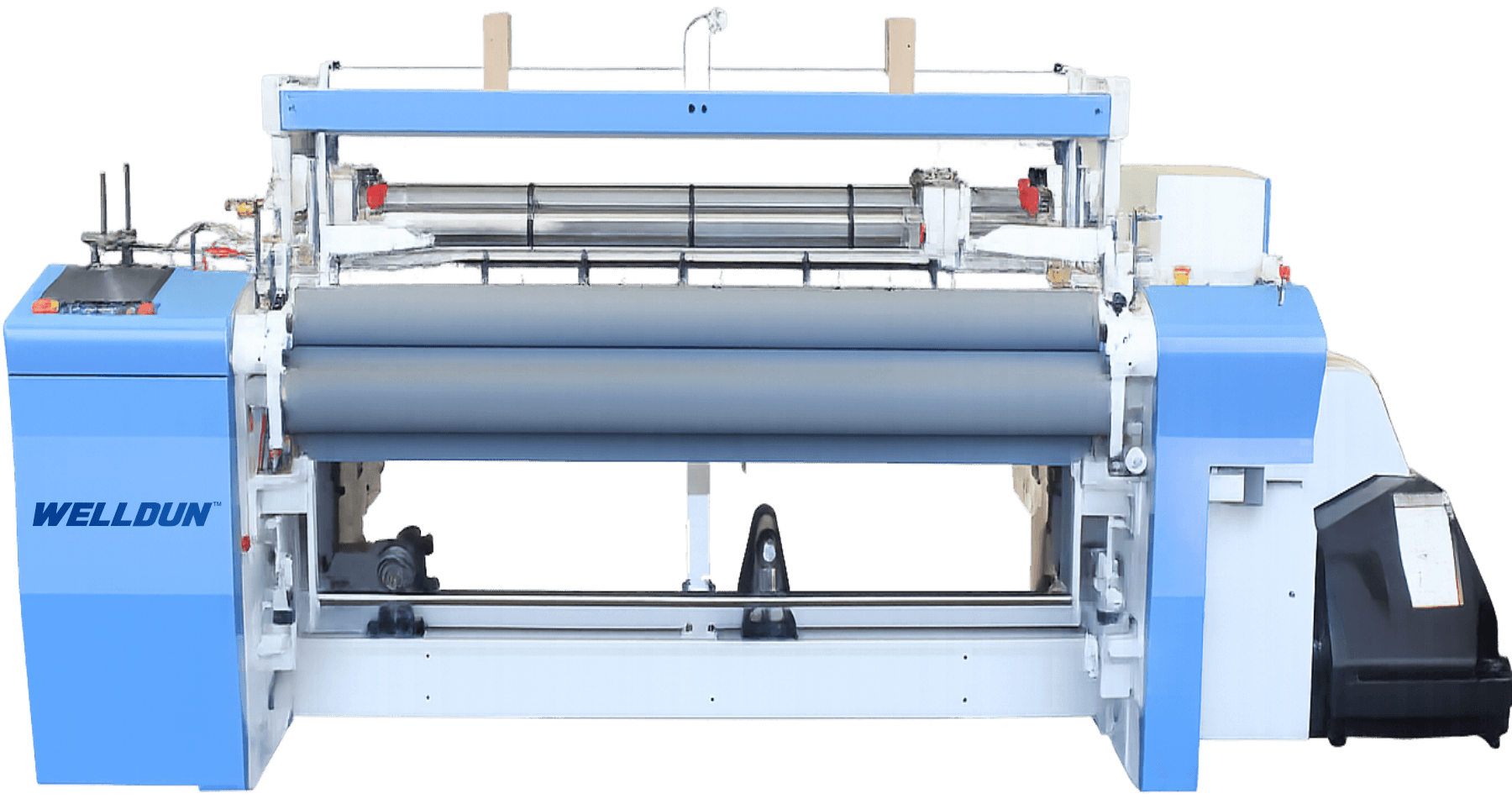

Airjet Loom
WD - 2100
Flagship
The WD - 2100 is WELLDUN™'s flagship airjet loom — optimized for stability, precision, and sustained high-speed production. It features a DSP electrical control system with reduced vibration design and precision beating structure, ensuring consistent fabric quality even at maximum operating speeds.
1100Max RPM
14Spec Points
✨Key Highlights
- Maximum Speed: 1100 rpm
- Reduced body vibration design
- Optimized beating structure
- High stability construction
- DSP electrical control system
- Crank multi-reed holders beating-up
- 4-color weft selection support
📋
Technical Specifications
| Max Speed | 1100 rpm |
| Rotating Speed Range | 500 – 1100 rpm |
| Reed Space | 150 – 360 cm |
| Motor Rated Power | 2.2 – 7.5 kW |
| Weft Selection (Short Yarn) | Ne100 – Ne5 |
| Weft Selection (Filament) | 50D – 900D |
| Color Support | 1 / 2 / 4 / 6 colors |
| Shedding Types | Crank / Cam / Dobby |
| Let-off | Electronic Let-off |
| Beam Diameter | 800 / 914 / 1000 mm |
| Beating-up Motion | Crank multi-reed holders |
| Stop Device | 6-line warp stop |
| Lubrication | Oil-bath type (centralized) |
| Control System | DSP electrical control |
📏Sizes & Options
- Reed Space: 150 cm to 360 cm
- Beam Diameter: 800 / 914 / 1000 mm
- Weft color selection support: up to 6 colors
🏆Engineering Grades
- Flagship DSP electrical control grade
- Low-vibration structural architecture
- Crank multi-reed holder beating standard
⚙️Target Use Cases
- Premium shirting and sheeting textiles
- High-speed synthetic and filament weaving
- Uniform and medical fabrics
