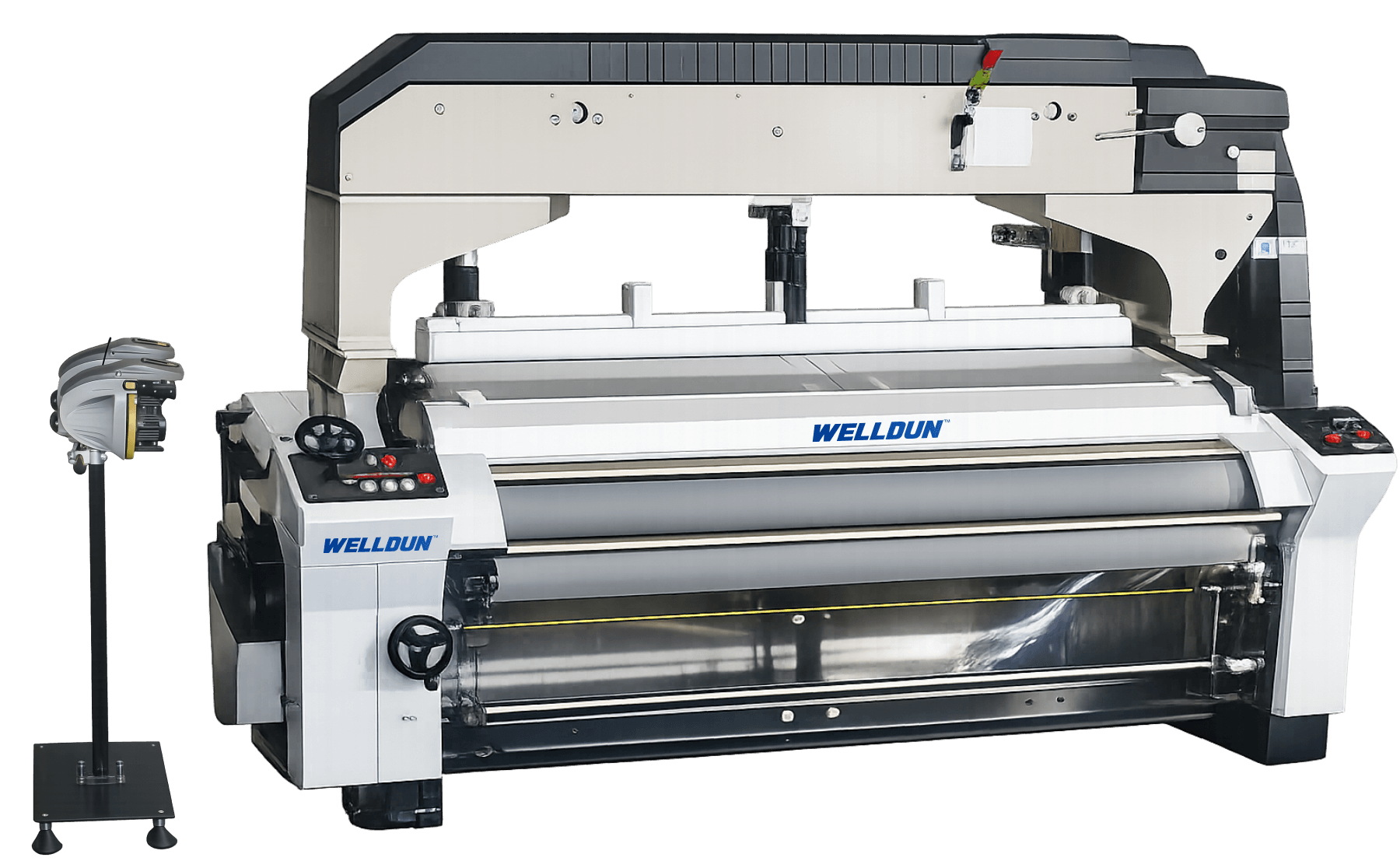

💧 Waterjet Loom
WD-501
Entry Level
The WD-501 is WELLDUN™'s versatile entry-level waterjet loom, engineered for fine and medium-density fabric production. With a solid beating-up mechanism, single/double pump options, and a full range of shedding configurations, it delivers reliable output for day-to-day textile manufacturing.
1000Max RPM
25 kg/100mWeight Density
12Spec Points
✨Key Highlights
- Maximum Speed: 1000 rpm
- Weight Density: 25 kg/100m
- Suitable for fine & medium density fabric
- High production & increased efficiency
- Single/double pump structure
- Crank / Cam / Dobby shedding options
- Reed space: 150–360 cm
📋
Technical Specifications
| Max Speed | 1000 rpm |
| Weight Density | 25 kg/100m |
| Reed Space | 150 – 360 cm |
| Motor Capacity | 1.5 – 7.5 kW |
| Beating Mechanism | Crank rocker mechanism |
| Let-off System | Mechanical / Electronic |
| Pick Density | 5–60 / cm (special: 3–96 / cm) |
| Nozzle Configuration | 1 / 2 / 3 / 4 / 6 nozzles |
| Shedding Types | Crank / Cam / Dobby |
| Coil Diameter | 520 mm (800 mm optional) |
| Pump Type | MS type / MH type |
| Driving System | Mechatronics + electromagnetic clutch |
